SUS202 Environmental Test Chambers

Name: SUS202 Environmental Test Chambers
Brand: KingPo
Price: 1 USD

Quality SUS202 Environmental Test Chambers wholesale

Brand Name : KingPo

MOQ : 1

Place of Origin : China

Certification : ISO 17025 Calibration certificate

Price : To be quoted

Packaging Details : safety wooden box

Delivery Time : 30 working days

Payment Terms : 100% TT in advance

Supply Ability : 3 units per month

internal size : D1000XW1000XH1000MM

Rated voltage : 380V 50HZ

internal material : SUS202#stainless steel

external material : SUS202#stainless steel

external size : D1200 X W1500 X H1850Mm

Power : 2KW

Contact Now

SUS202 Environmental Test Chambers

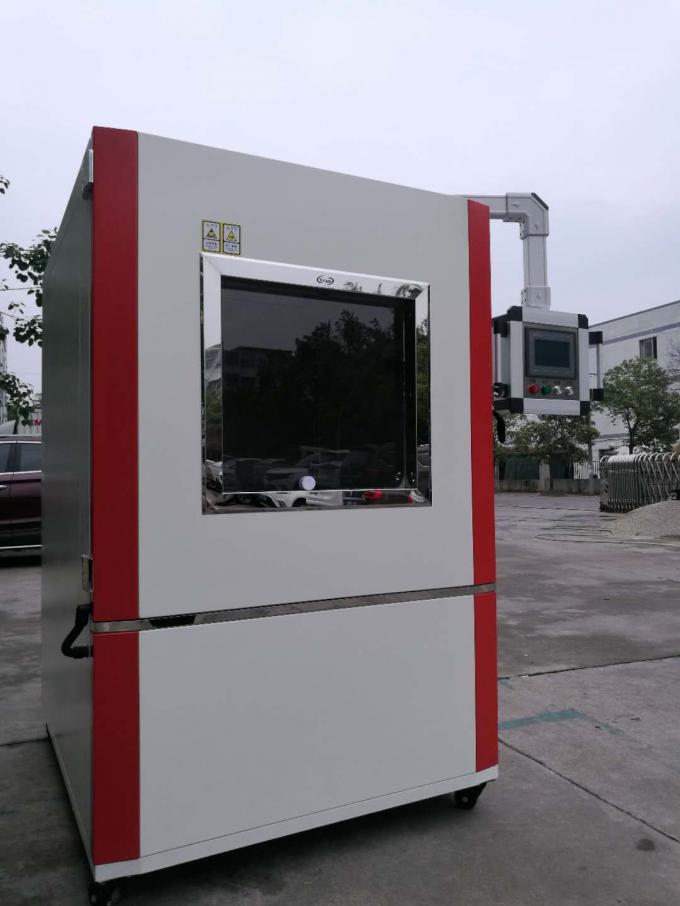

Dust Test Chamber

Function Description

The chamber is applicable to check whether the device and components are ensured good performance when electrical product and its outer case are sealed in an excessively dusty environment,which is of scientific design and vividly simulate various environment like dusty one.Intelligent PLC control system make dust amount reaches test requirement.The top-down and non-laminar flow dust fall vertically on the sample and then vibrate the collecting funnel to circulation fan.(Note:Internal size of non standard dust test chamber can be customized.)

Technical Parameter

type	KP-HW1000
Interior dimension	D1000XW1000XH1000MM
Rated voltage	380V 50HZ
vacuum pump(IP6X)	0～30Kpa(optional accessory)
Air pressure(optional)	0.5～0.8MPa
Test time	0～99h 59min
Load cycle(optional)	0～99h 59min
Blowing dust period control	1s～9999min
Flow rate	≤2m/s
Test grit(talcum powder)dosage	2kg/m3-4kg/m3
Interior material	SUS202#stainless steel/ cold rolled sheet with plastic spray
Exterior material	SUS202#stainless steel
Exterior dimension	D1200 X W1500 X H1850Mm
controller	Independent R&D PLC touch screen controller
Power	2KW(according to load requirements)
Metal screen mesh	nominal wire diameter 50µm;nominal spacing between wires75µm

SUS202 Environmental Test Chambers

Product Tags:

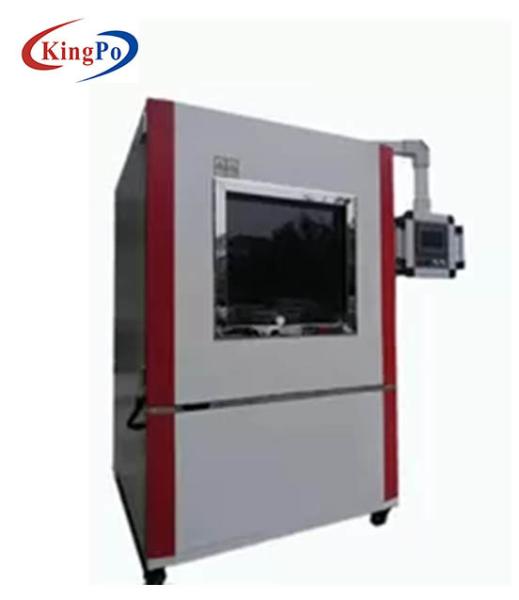

SUS202 Environmental Test Chambers Images
