Description
IPX5 IPX6 Laboratory Sand and Dust Resistance Test Chamber is designed according to GB4706, GB2423, GB7000.1, IEC60529,ect standards and meet the IPX5 and IPX6 dust test requirements. It is maily used for testing control cabinet, household appliances, low voltage electric appliance, automobile, lamps and lanterns, motorcycle parts,ect outer shells. Test chamber pressure can be constant and changed, suitable for indoor low concentration dust pollution test, assessment sample in this environment of sealing and corrosion degree.
Features
1. Formed using CNC machining box, nice shape, and no reaction by the handle, easy to operate.
2. Imported high grade stainless steel inner tank (SUS304) mirror panels, use of A3 steel box outside the gall spray, increasing the appearance of the texture and cleanliness.
3. Equipment containing dust vertical circulation of air, dust can be reused for testing; device itself has a good sealing performance, test, laboratory test can clearly observe the situation; device equipped with a vacuum system to meet the needs test; equipment dust the bottom of the device can be replaced,
4. Large observation window with bright lights to keep the box, and use of tempered glass embedded heating element, at any time a clear observation box condition.
5. Test with 50mm diameter holes for the external test power line or signal line.
6. Best after sales service: 18 Months free parts maintenance. 7. Meet international test standards. 8. Customization is available & welcomed.
Specifications
| Item | Lab Sand Dust Resistance Simulation Test Chamber |
| Test chamber dimension | 800*800*800mm (800*1000*1000, 1000*1000*1000 ,1000*1500*1000mm) |
| Outer dimension | according to inner structure |
| Metal screen wire diameter | 50um |
| Screen line space | 75um |
| Environment temperature and humidity | 25~40°C, 45~75%RH |
| Dust(talcum powder) concentration | 2~4kg/m3 |
| Test time | Dust test time set freely, 0~999.9hr |
| Test dust | Dry talcum powder or port land cement |
| Test standards | GB4706,GB2423,GB7000.1,IEC60529 |
| Cable hole | φ50mm(circumscribed power accepted) |
| Power supply | AC 2ψ3W220V 50HZ 2.5KW |

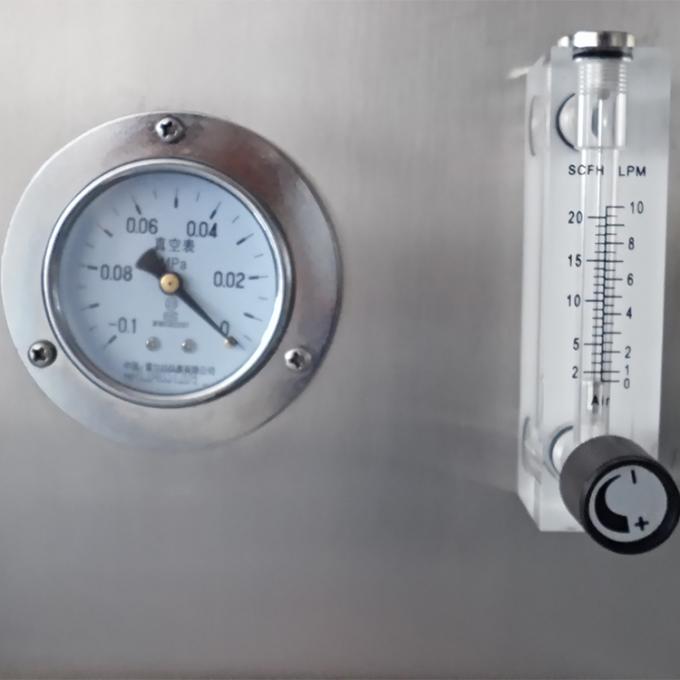

Detailed Images
