380V 50HZ Environmental Test Chambers

Name: 380V 50HZ Environmental Test Chambers
Brand: KingPo
Price: 1 USD

Brand Name : KingPo

MOQ : 1

Place of Origin : China

Certification : ISO 17025 Calibration certificate

Price : To be quoted

Packaging Details : safety wooden box

Delivery Time : 30 working days

Payment Terms : 100% TT in advance

Supply Ability : 3 units per month

model : D2XW2XH2.8M

rated voltage : 380V 50HZ

vacuum pump(IP6X) : 0～30Kpa

Gas pressure(optional) : 0.5～0.8MPa

test time : 0～99h 59min

Blow period control : 1s～9999min

Contact Now

380V 50HZ Environmental Test Chambers

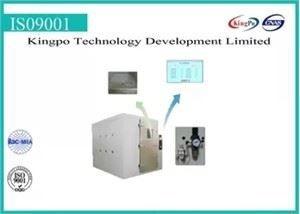

Stepping Type Dust Test Chamber

Function Description

The chamber is applicable to check whether the device and components are ensured good performance when electrical product and its outer case are sealed in an excessively dusty environment,which is of scientific design and vividly simulate various environment like dusty one.Intelligent PLC control system make dust amount reaches test requirement.The top-down and non-laminar flow dust fall vertically on the sample and then vibrate the collecting funnel to circulation fan.

type	KPSC-8F	KPSC-12F
Interior dimension	D2XW2XH2M	D2XW2XH2.8M
Rated voltage	380V 50HZ	380V 50HZ
vacuum pump(IP6X)	0～30Kpa(optional accessories)	0～30Kpa(optional accessories)
Gas pressure(optional)	0.5～0.8MPa	0.5～0.8MPa
Test time	0～99h 59min	0～99h 59min
Load cycle(optional function)	0～99h 59min	0～99h 59min
Blow period control	1s～9999min	1s～9999min
Airflow speed	≤2m/s	≤2m/s
Test sand(talcum powder)	2kg/m3-4kg/m3	2kg/m3-4kg/m3
Exterior material	SUS202#stainless steel/ cold rolled sheet with plastic spray	SUS202#stainless steel/ cold rolled sheet with plastic spray
Interior material	SUS202#stainless steel	SUS202#stainless steel
Exterior dimension	D2500 X W2700 X H3300Mm	D2500 X W2700 X H4100Mm
controller	Independent R&D PLC touch screen controller	Independent R&D PLC touch screen controller
Power	6KW(according to load requirements)	6KWaccording to load requirements)
Metal mesh	nominal wire diameter 50µm,nominal spacing between wires 75µm
