Products Introduction:
The test apparatus is designed and manufactured according to clause 14.2.9 of IEC EN 60529 2013 Edition 2.2 , DIN40050-9, ISO 20653-2006, ISO30653-2006, clause 4.9.2of QC/T 417.1-200, clause 6.2.7 and 6.2.8 of TOYOTA ENGINEERING STANDARD TSC1000G. It is applicable for waterproof testing of the electrical and auto parts under high temperature and high pressure.

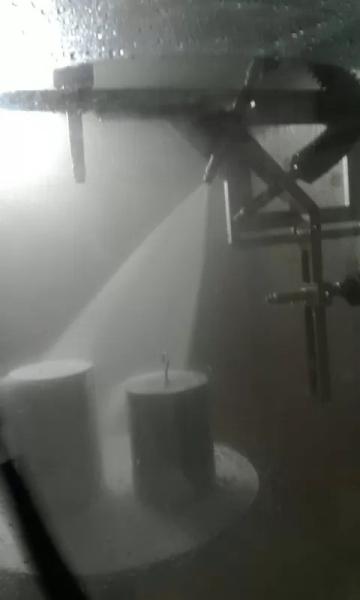

The equipment is consists of heating water tank, high pressure plunger pump, high pressure solenoid valve, fan nozzle, turntable and so on. Firstly, heat the water in the water storage tank to required temperature, secondly, mount the sample on the turntable, adjust the position of the nozzle, thirdly, close the protective door of the test equipment, set all test required parameters, finally, start the test. The four nozzles spray for 30 seconds in order during the test.
Technical parameters:
Item | Parameters |
Working Volume | 1m³ |
Test Water Temperature | 80±5 ℃ |
Spray Pressure | 8Mpa～10Mpa (adjustable) |
Spray Flow | 14L/min～16L/min (change according to pressure) |

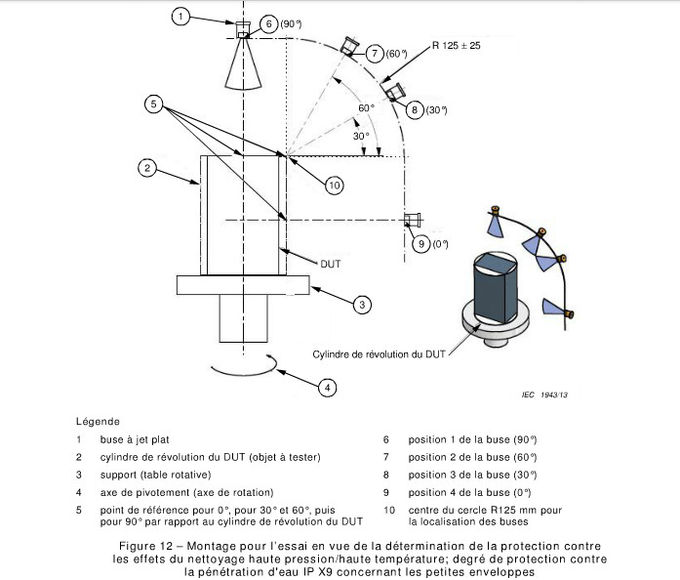

Nozzle Number | 4 (0°,30°,60°,90°) |

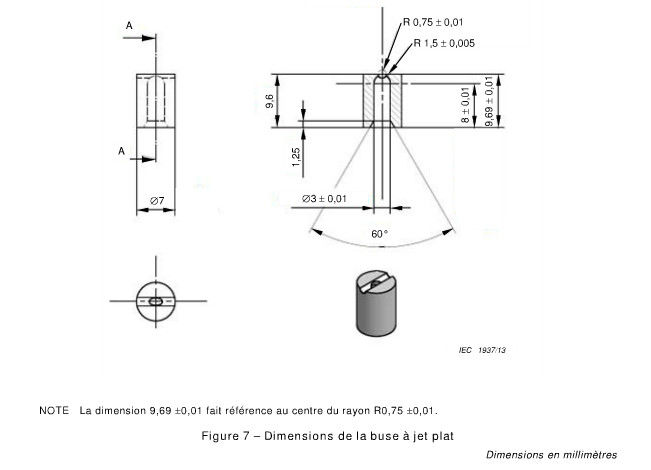

Nozzle Size | According to standard graphics, meet standards |
Nozzle rotating speed | 23 RPM |
Spray Distance | 100～150mm (adjustable) |
Nozzle Spay Time | 0-99,9s(can be set) |
Spray Sequence | Automatically switch by sequence |
Sample Support Platform | φ400mm |
Sample Support Platform Speed | 0-17r/min (Stepless speed regulation) |
Sample Support Platform Lift | 300mm～400mm (Manually) |
Sample Support Platform Bearing | ≤15kg |
Tank Volume | 50L |
Test Water | Recycling |
Flow Meter | Can be disassembled |
Power Supply For Test Sample | Provide interface for test product, 4 core wire power supply, the maximum 30A |
Material | The frame material is the industrial shaped aluminum, and the inner shell material is SUS304 stainless steel plate |
Control Mode | PLC controller + touch screen control, inverter adjust water pressure |
HongCe has a large range of test equipment for Degrees of protection provided by enclosures (IP Code), our waterproof degrees test equipment and system meet the requirements of all demostic and international standards:
CEI IEC 60529 / GB 4208 Degrees of protection provided by enclosures (IP Code)
CEI IEC 60068-2-11 / GB/T 2423.17 Basic environmental testing procedures – Part 2-11: Tests – Test Ka: Salt mist
IEC 60068-2-1 / GB/T 2423.1 Environmental testing – Part 2-1: Tests – Test A: Cold
CEI IEC 60068-2-2 / GB/T 2423.2 Environmental testing – Part 2-2: Tests – Test B: Dry heat
IEC 60068-2-78 / GB/T 2423.3 Environmental testing – Part 2-78: Tests- Test Cab: Damp heat, steady state
UL 1598 Luminaires
UL 50 Enclosures for Electrical Equipment, Non-Environmental Considerations
