IEC60884 1 Immersion Testing Equipment IPX7 Waterproof Pereformance

Name: IEC60884 1 Immersion Testing Equipment IPX7 Waterproof Pereformance
Brand: KINGPO
Price: 1 USD

Quality IEC60884 1 Immersion Testing Equipment IPX7 Waterproof Pereformance wholesale

Brand Name : KINGPO

MOQ : 1

Certification : calibration certificate

Place of Origin : China

Price : To be quoted

Payment Terms : T/T

Supply Ability : 3 set per month

Delivery Time : 25 working days

Packaging Details : safety wooden box

model : IPX7A

Outer size : 1080x1080x1300mm

Water tank inner size : 1000x1000x1200mm

Max test depth : 1.2m

chamber material : 304 stainless steel

wall thickness : 1.5mm

Contact Now

IEC60884 1 Immersion Testing Equipment IPX7 Waterproof Pereformance

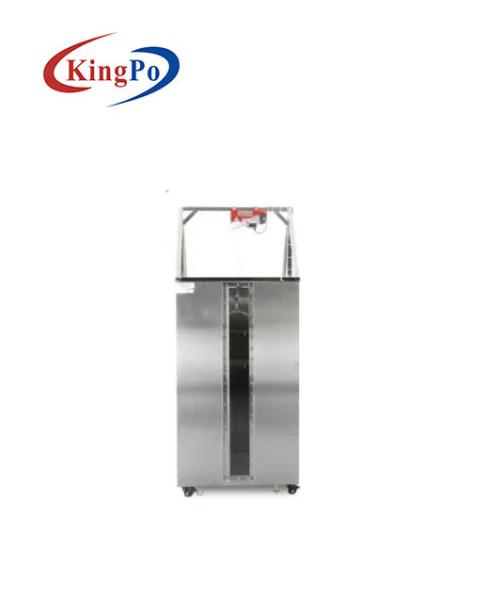

IEC60884-1 Immersion Testing Equipment

IP Code of the IPX7 Immersion Test Chamber IEC60884-1 Test The Product Waterproof Pereformance

Standard

IEC60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60335-1, IEC60598-1.

Application

It is used for the testing of IPX7. Mainly used to test the product waterproof performance in the soaking environment (water depth 1 meters). Through the test, check whether the product waterproof level meet the requirements, so that the product design, R&D and factory inspection use.

Features:

1. The middle is made of 12mm thick tempered glass, which makes the test situation clearer and more transparent, which is convenient for observation and test.

2. The outer chamber is made of 304 stainless steel, and the middle of the two layers is made of 40 square ribs, which is rust-resistant and strong.

3. The test chamber allows a maximum water depth of 1.2 m, and the water level gauge is designed according to the height of the water tank, and the water level value is clear.

Parameters:

Model	IPX7
Outer size	1080x1080x1300mm
Water tank inner size	1000x1000x1200mm ( can be customized)
Maximum test depth	1.2m
Material of chamber	304 stainless steel, thickness 1.5mm
Water level display	Stainless steel ruler (accuracy 1mm), horizontal vision 15°
Water level adjustment method	Inlet / outlet valve, manually regulated
