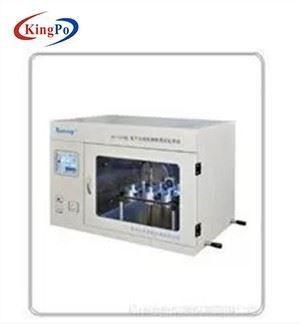

ZR-1070 model blocked microorganism penetration experiment system
Product introduction
The zr-1070 model is composed of air source generator system, detection body, protection system, control system, etc., which is used for the penetration test of the blocked microorganisms on the operation sheet, the operating gown and the clean clothes.
Executive standard
YY/ t0506.5-2009 surgical orders, operating gowns and cleaning garments for patients, medical personnel and instruments -- part 5: method of test for penetration of blocked microorganisms
Related intellectual property
Patent number:ZL201410056231.4 Vibration detector for blocking dry microorganism penetration test
Patent number:ZL201420071369.7 The invention relates to a penetration test system for blocked microorganisms
technical features
Negative pressure test system, equipped with fan exhaust system and inlet and outlet high-efficiency filters to ensure the safety of operators;
Special operating software, with software parameter calibration, fault detection and automatic protection functions;
Industrial-grade high-brightness color touch screen;
Built-in high-brightness lights in the cabinet;
Built-in leakage protection switch to protect the safety of operators;
The interior of the cabinet is integrally processed and formed with stainless steel, and the exterior is sprayed with cold-rolled plates.
Insulation and flame retardant between inner and outer layers;
The front switch glass door is convenient for experimenters to observe and operate.
Detachable bracket for easy handling;
Dual purpose casters for support and mobility.
technical indicators
Main parameters
Vibration method Pneumatic ball vibrator
Vibration frequency 20800 times/min
Negative pressure cabinet ventilation flow ≥ 5m3/min
Hepa filter filter efficiency is better than 99.99%
Cabinet negative pressure range (-50～-200) Pa
Vibration force 650N
Workbench size (length 400×width 400×thickness 10) mm
Bench medium marble slab supported by 4 rubber posts at each corner
Test Vessels 6 stainless steel test vessels
Data storage capacity 1000 groups
Working power supply AC220V±10%, 50Hz
Machine size (length 1000×width 685×height 1380) mm, with bracket
Machine weight about 120kg
Machine power <2000W
